Description
The VANYO ENERGY 16kWh 51.2V 314Ah LiFePO₄ Lithium Battery is a high-capacity energy storage solution designed for residential, commercial, and renewable-energy applications. Built with Grade A LiFePO₄ battery cells, an integrated BMS, LCD monitoring, and a mobile cabinet design, it provides a practical solution for storing solar energy and delivering reliable backup power.
With 16kWh of energy storage capacity, this battery is suitable for larger homes, offices, businesses, and other installations requiring substantial energy storage.
Key Specifications
| Specification | Details |
|---|---|
| Battery Capacity | 16kWh |
| Nominal Voltage | 51.2V |
| Battery Capacity | 314Ah |
| Battery Chemistry | LiFePO₄ |
| Battery Cells | Grade A cells |
| Dimensions | 820 × 450 × 250mm |
| Net Weight | 107kg |
| Gross Weight | 121kg |
| Display | Integrated LCD screen |
| Design | Freestanding mobile cabinet |
| Brand | VANYO ENERGY |
Key Features
- 16kWh High Energy Capacity for substantial energy storage
- 51.2V / 314Ah configuration
- LiFePO₄ lithium battery technology
- Grade A battery cells for the battery pack
- Integrated BMS for battery management and protection
- LCD Display for monitoring battery information and operating status

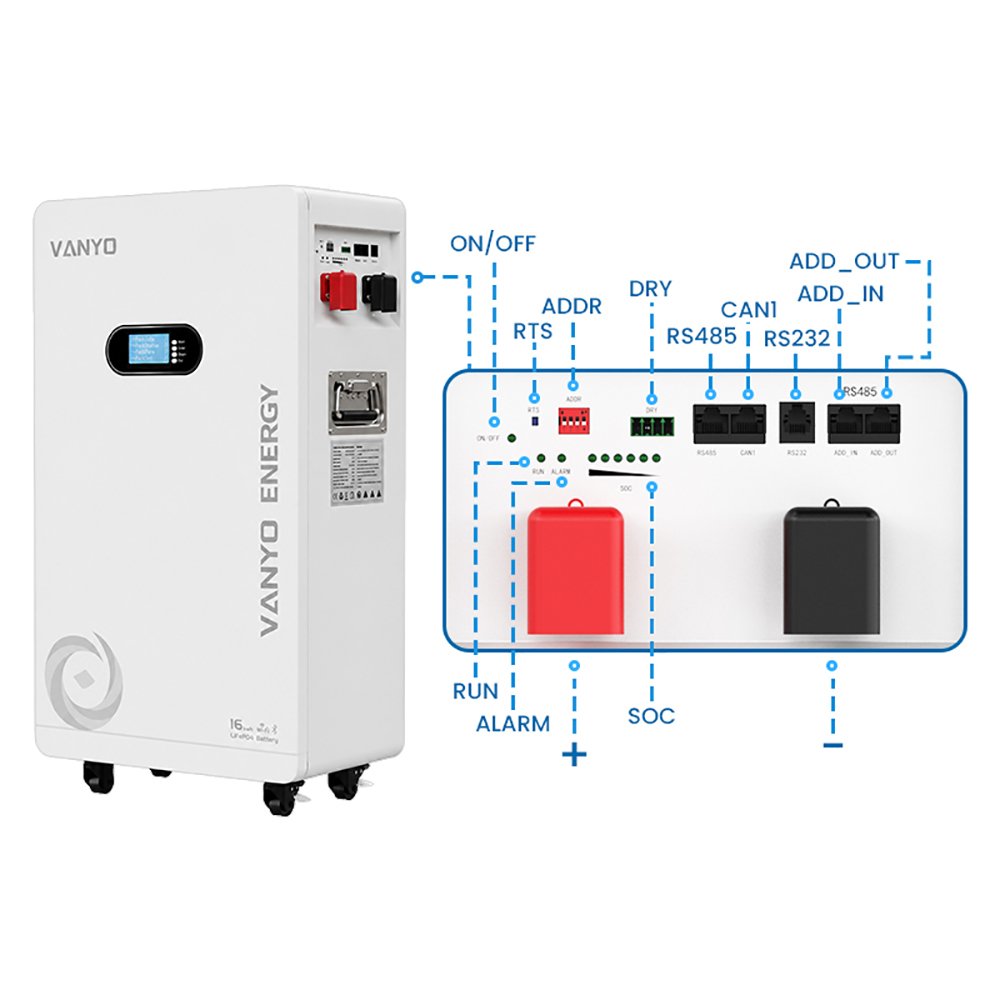

- CAN / RS485 / RS232 Communication interfaces
- SOC Indicator for monitoring state of charge
- RUN & ALARM Indicators
- ON/OFF Switch
- Expandable Communication Ports with ADD_IN and ADD_OUT connections

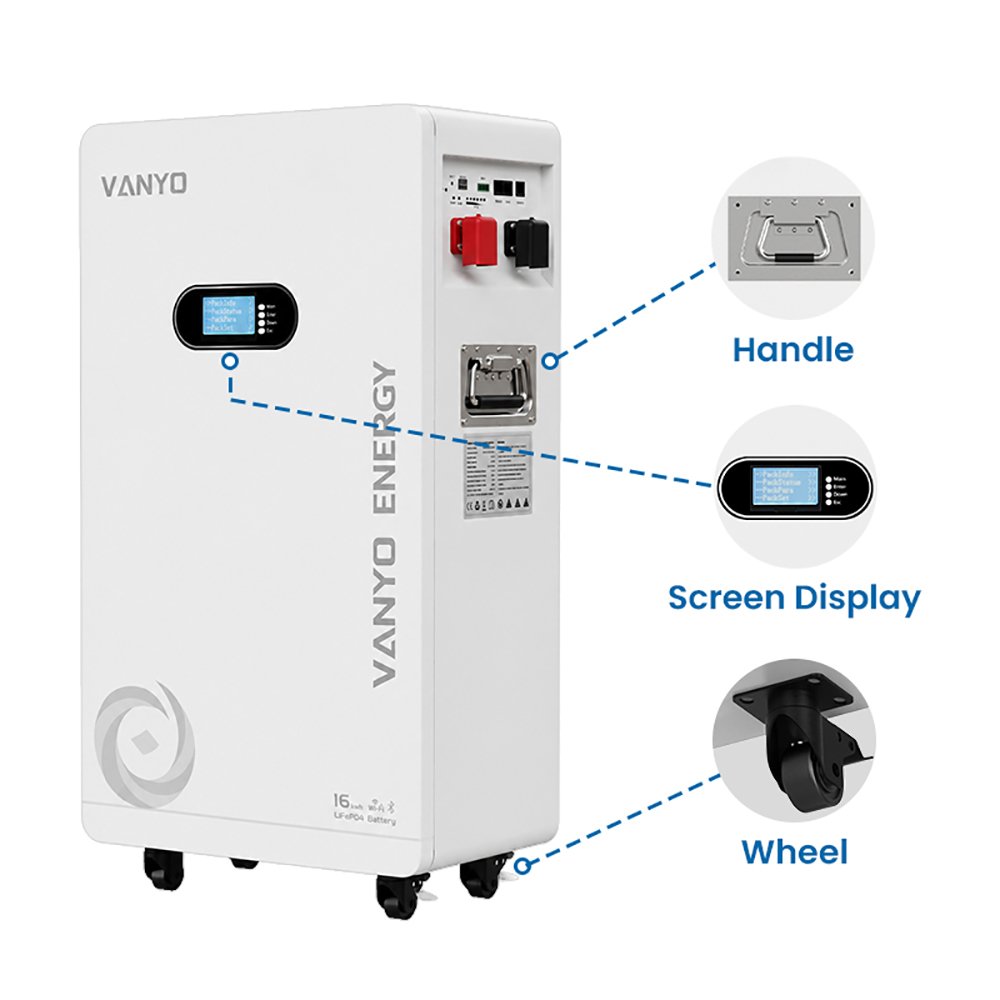

- Sliding Wheels for easier movement and positioning
- Durable enclosed cabinet design

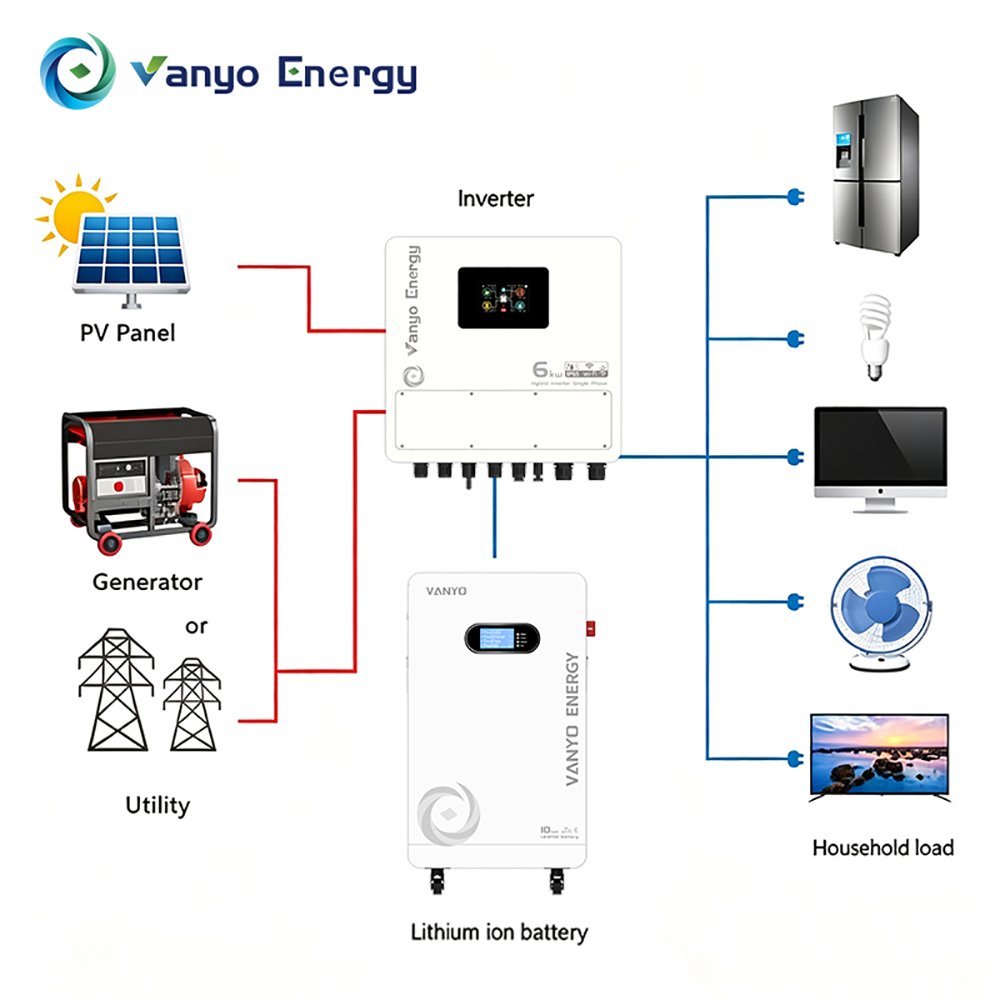

- Suitable for solar, inverter, and backup-energy systems

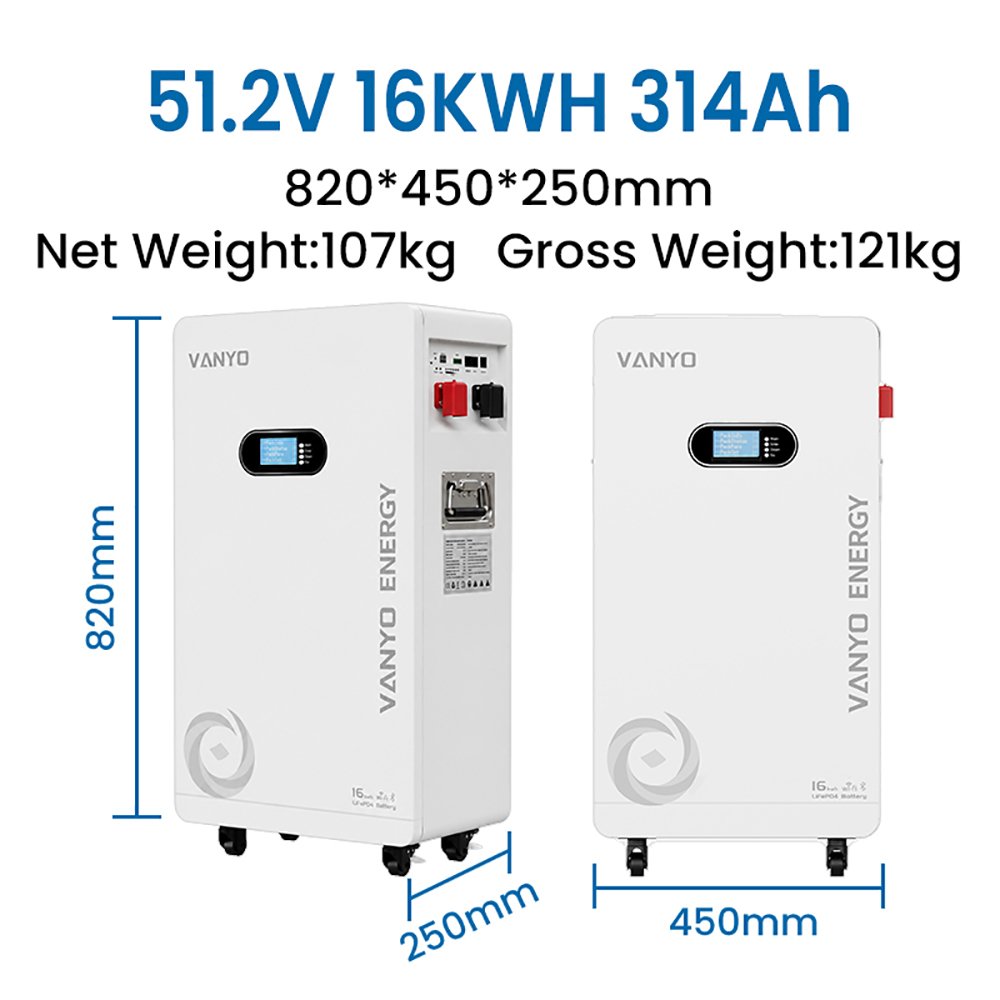

Dimensions & Weight
Dimensions: 820 × 450 × 250mm
Net Weight: 107kg
Gross Weight: 121kg
The relatively compact 250mm depth helps make the battery suitable for installations where floor space is limited.
Ideal Applications
Residential Solar Systems • Commercial Energy Storage • Inverter Backup • Offices • Shops • Hotels • Small Businesses • Renewable Energy Systems • Backup Power Systems
