Description

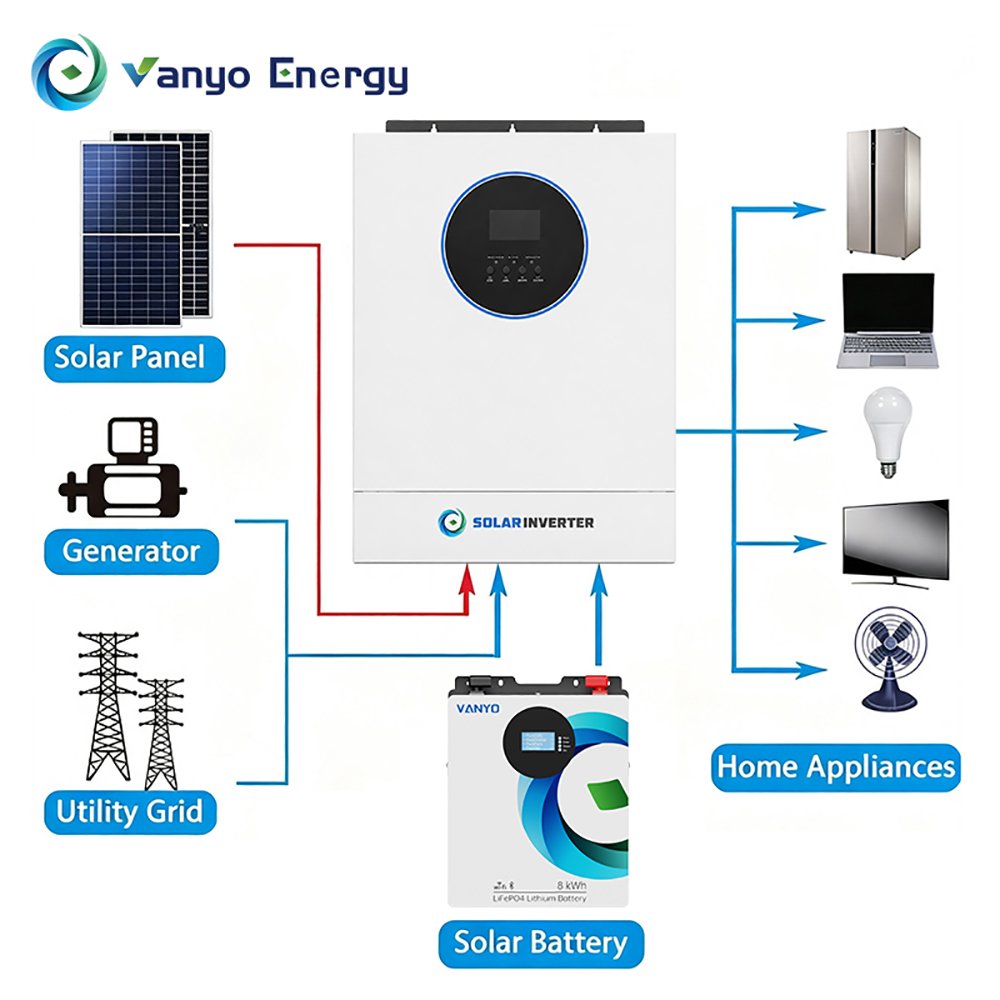

The VANYO ENERGY 11kW Solar Inverter is a high-capacity power management solution designed for residential, commercial, and small industrial solar energy systems. It is built to integrate solar panels, battery storage, utility power, and generators, providing flexible energy management for a wide range of applications.

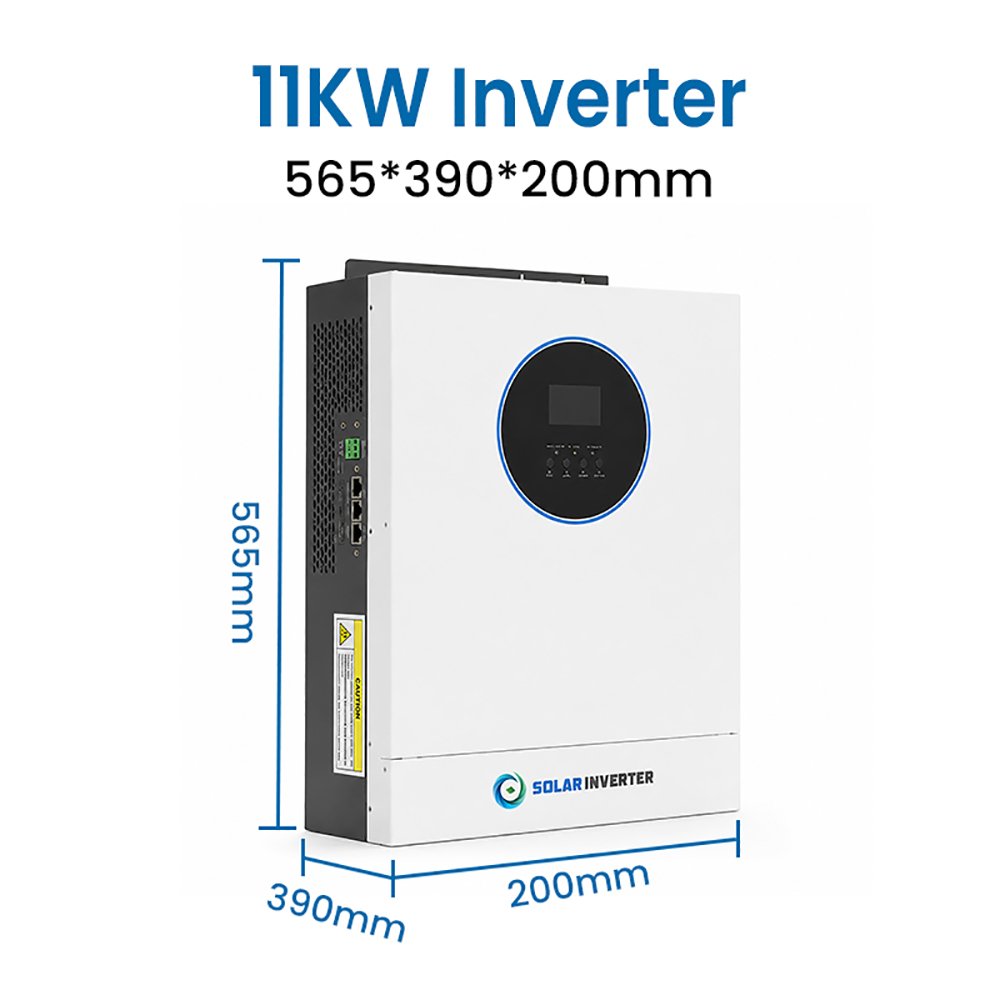

With an 11kW rated output and a compact 565 × 390 × 200mm wall-mounted design, the inverter offers substantial power capacity while maintaining a practical installation footprint.
Key Specifications
| Specification | Details |
|---|---|
| Rated Power | 11kW |
| Dimensions | 565 × 390 × 200mm |
| Mounting | Wall-mounted |
| Display | Integrated LCD display |

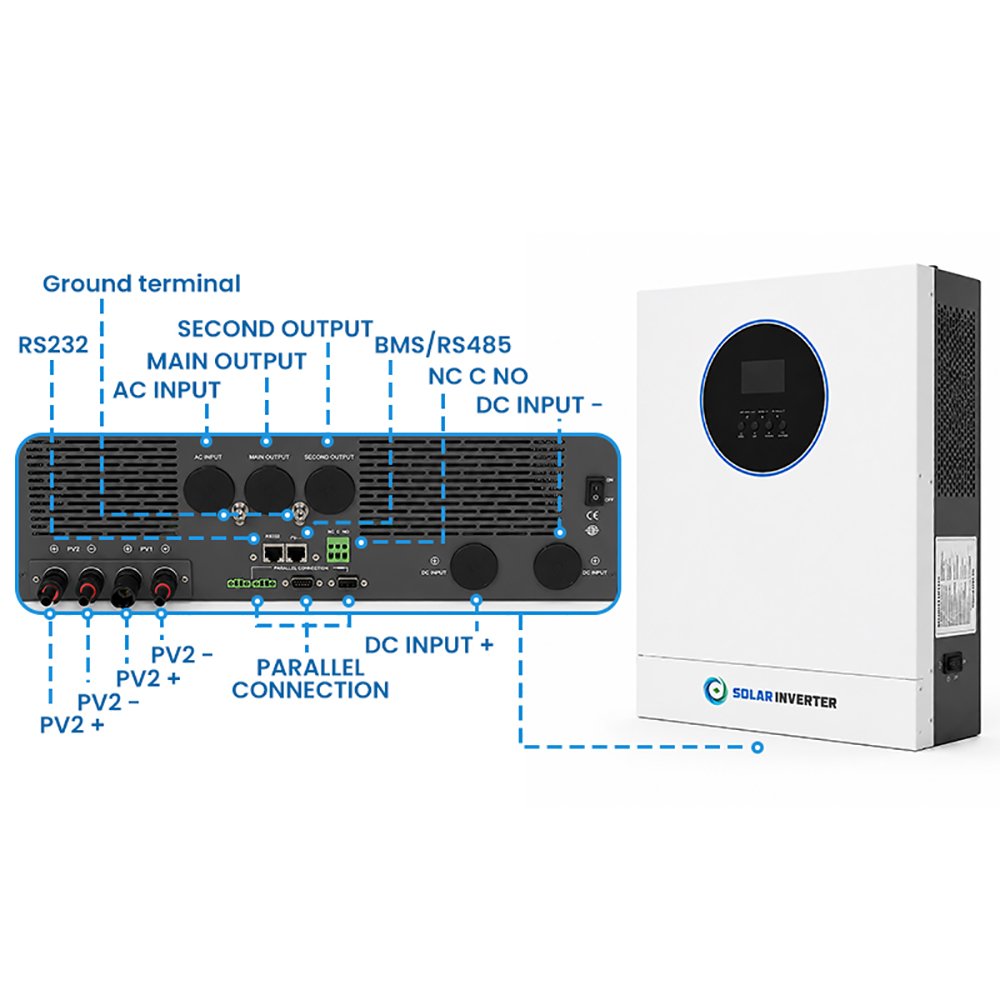

| PV Inputs | PV1 / PV2 connections |
| AC Input | Utility/Grid or generator connection |
| AC Outputs | Main Output & Second Output |
| Battery Connection | DC Input + / − |
| Communication | BMS / RS485 & RS232 |
| Parallel Connection | Supported |
| Cooling | Ventilation openings |
Key Features
- 11kW High-Power Output for demanding energy requirements
- Dual PV Input Connections for solar-system integration
- Solar + Battery Integration for energy storage and backup
- Utility Grid & Generator Compatibility
- Main Output and Second Output for flexible load management
- Parallel Connection Capability for scalable system configurations
- BMS/RS485 Communication for compatible battery systems
- RS232 Communication Interface

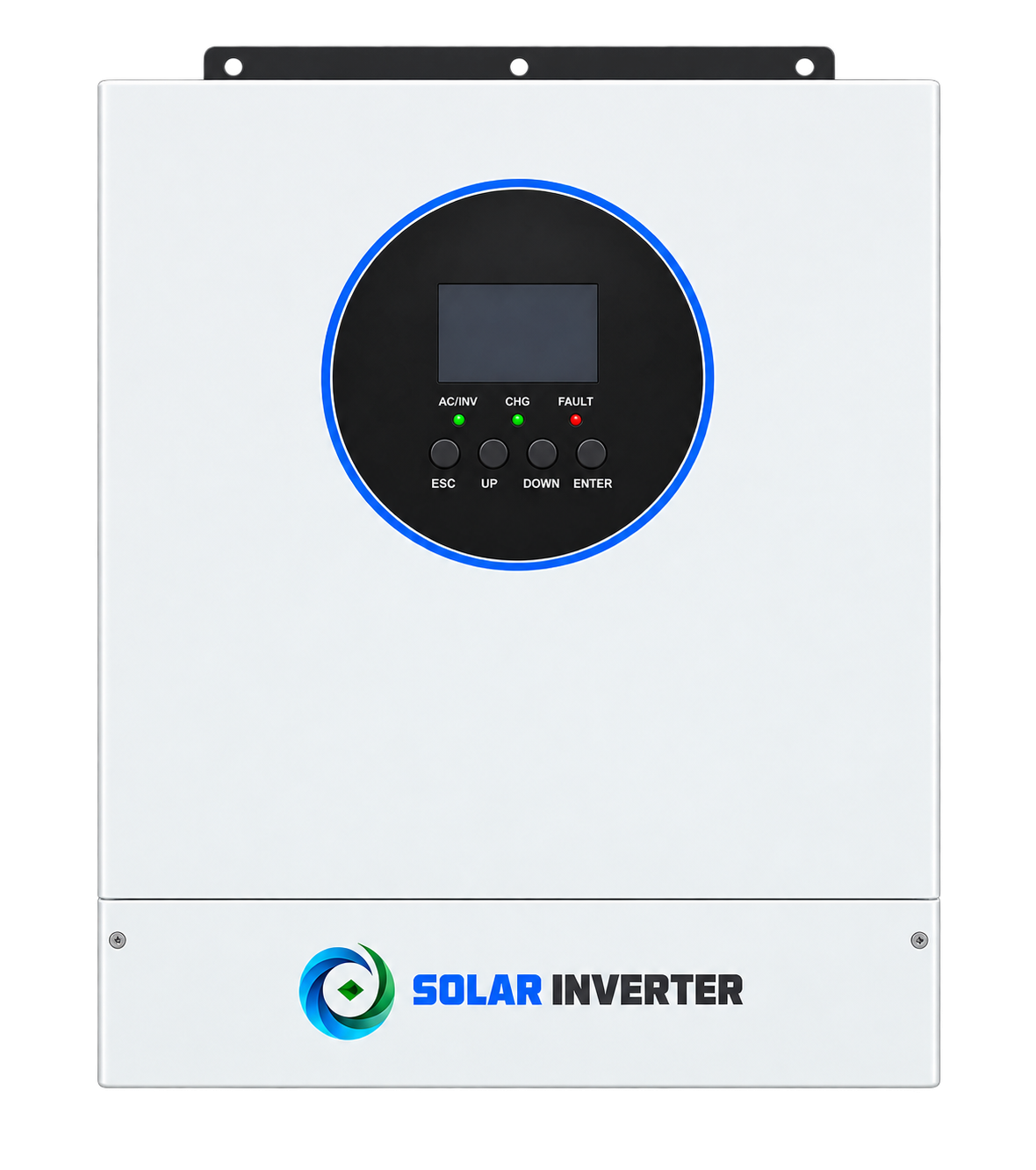

- Integrated LCD Display for monitoring and system control

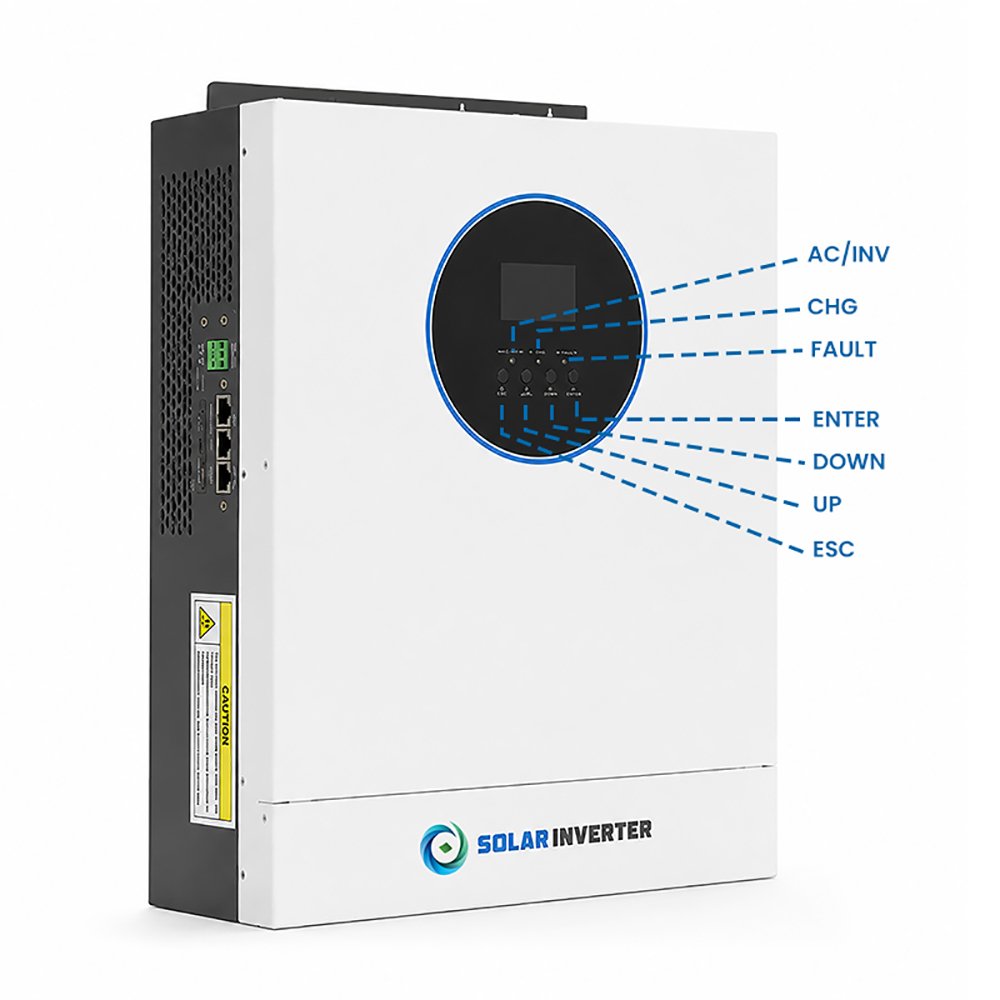

- AC/INV, CHG and FAULT Indicators for operating-status monitoring
- UP, DOWN, ENTER and ESC Controls
- Ventilation System designed to support heat dissipation
- Compact Wall-Mounted Design
- Dimensions: 565 × 390 × 200mm
